01
Cable Machines
Replacement assemblies for selectorized stations, cable crossover machines and multi-gyms.
Applications
Replacement cables for popular strength equipment
Built for repair companies, gym operators, equipment brands and distributors that need reliable, repeatable cable assemblies.
02
Functional Trainers
Flexible, abrasion-resistant cables for multi-axis pulley routing and frequent daily use.
03
Lat Pulldown & Row
Low-stretch 7x19 construction for smooth travel under repeated heavy loads.
04
Home Gyms
Cost-effective custom replacements for discontinued or hard-to-find cable sets.
05
Pilates Equipment
Quiet, smooth cable and fitting combinations for controlled resistance movement.
06
OEM Service Parts
Repeatable production, labeling and packaging for equipment manufacturers and distributors.
Materials & specifications
Choose the cable for your usage level
Final specifications are confirmed against your sample or drawing before production.
| Coating | Typical construction | Available OD | Recommended use | Key benefit |
|---|---|---|---|---|
| PVC / TPU | 7x7 or 7x19 | 4–8 mm | Home and general fitness | Economical, multiple colors |
| PU | 7x19 | 4–8 mm | Semi-commercial equipment | High abrasion resistance |
| PA12 Nylon | 7x19 | 4.76–7.8 mm | High-cycle commercial gyms | Low friction and long fatigue life |
Ordering process
Three ways to specify your replacement cable
Fast quotation
Send measurements and photos
Photograph both ends beside a ruler and provide the finished cable length and outside diameter.
For OEM buyers
Send a technical drawing
Provide end-to-end dimensions, tolerances, coating, fittings and required quantity.
Custom color only
Send a physical color sample
A sample is only required when you need us to match an exact custom coating color.
End fittings
Match the original connection hardware
Below are common examples. More than 60 standard SKUs and custom-machined fittings are available.

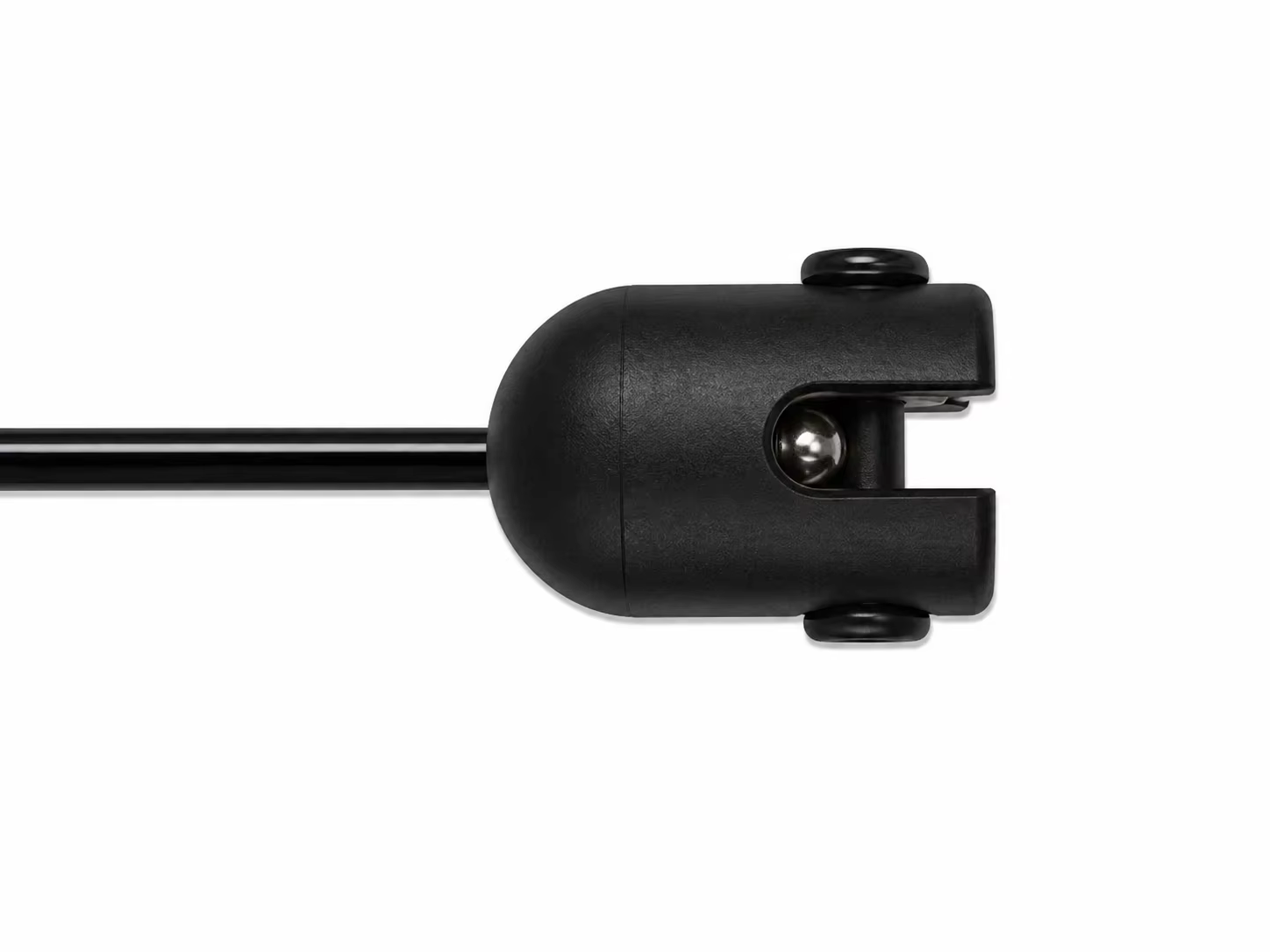

Clevis Fork
Eye Terminal
Threaded Stud
Ball Stop

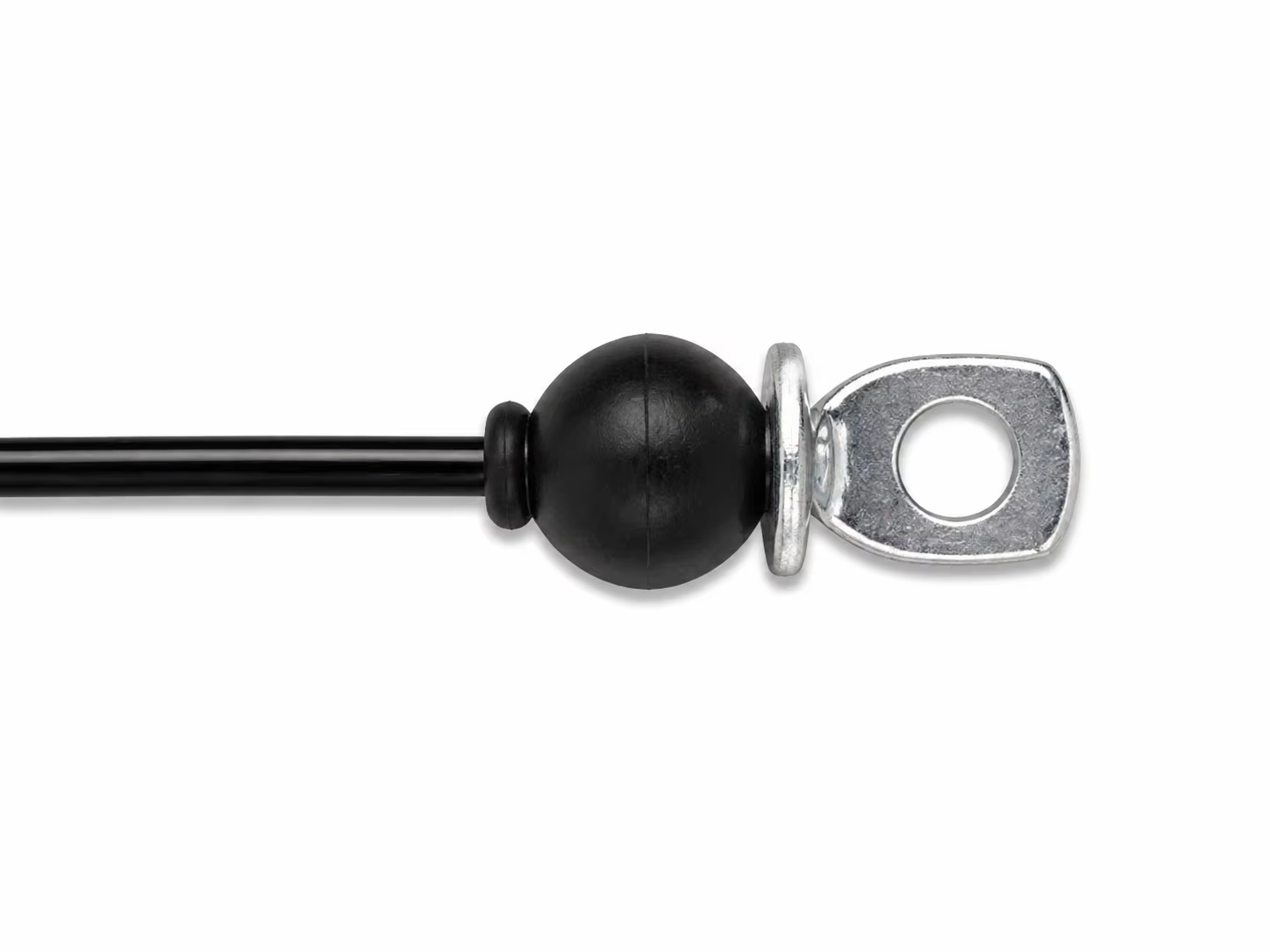

Ball + Eye
Cylinder StopQuality control
Built for safe, repeatable movement
- Incoming wire rope and coating inspection
- Crimp dimensions checked during production
- Finished length and terminal orientation verified
- Pull-test and fatigue-test options
- Batch identification and inspection records
- Individual labeling and custom packaging available
17+ yearsWire rope and cable assembly manufacturing
ISO 9001Quality-management system
60+ fittingsStandard hardware plus custom machining
ISO 9001Quality-management system
60+ fittingsStandard hardware plus custom machining
Frequently asked questions
Replacement gym cable FAQ
How do I measure the cable correctly?
Measure the finished length from the reference point on one fitting to the reference point on the other. Also record the steel-core diameter, coated outside diameter, thread size and fitting dimensions. Send photos showing the tape measure and both cable ends.
Can you make one cable from a sample?
We can assess single replacement requirements, but production quantity and cost depend on the fittings and whether custom tooling is required. For distributors and OEM service parts, repeat orders offer the best value.
Which construction should I choose, 7x7 or 7x19?
7x19 is generally preferred where the cable repeatedly bends around pulleys because it is more flexible. The correct choice also depends on pulley diameter, load, cable route and the original equipment design.
Do I need to send the original cable?
No. For standard colors, clear photos, accurate measurements or a technical drawing are normally sufficient. A physical color sample is only needed when an exact custom coating color must be matched.
Get a technical review
Send your cable photos or drawing
Include machine model, finished length, cable diameter, fitting dimensions and required quantity. Our team will review the specification and reply with the next step.
